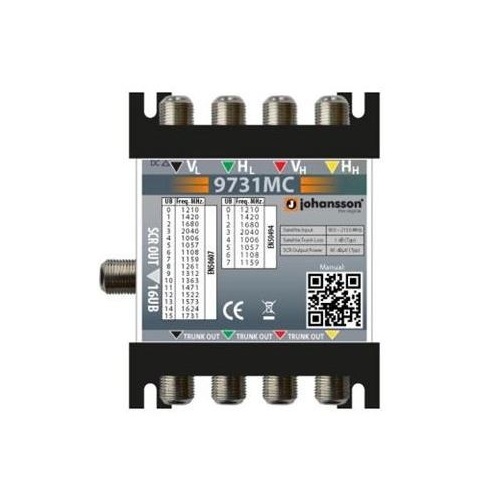

Johansson 9731MC 4xIN 1xOUT 16UB Wideband friendly

dCSS/dSCR Multiswitch 9731MC

TECHNICAL SPECIFICATIONS
Trunk inputs - 4
Trunk outputs - 4
Frequency (MHz) - 950 – 2150
Trunk loss - 1 dB
dCSS/dSCR outputs - 1
dCSS/dSCR output connector - 75 Ohm F type (Female)
dCSS/dSCR UBs - 16
dCSS/dSCR output level - 85 dBµV
Return loss - >=8 dB (Typ 12 dB)
Tap loss - Not applicable, AGC (automatic Gain control)
Band and polarity selection -
DiSEqC 1.0 (unidirectional)
DiSEqC 2.0 (bidirectional)
Standard EN 50494 (SCD)
Standard EN 50607 (SCD 2)
Max DC current consumption - < 300mA @ 13 Volt
Power supply - From STB, power inserter or trunk (VL)
Power inserter (2460+9669 available separately) - 3A, 20V
